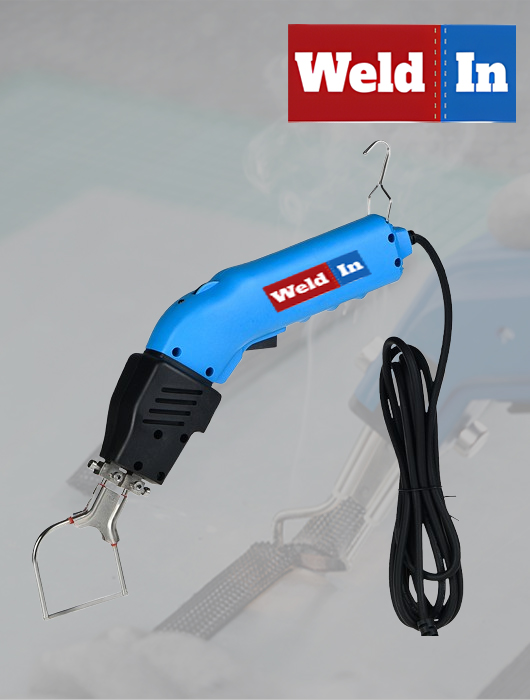

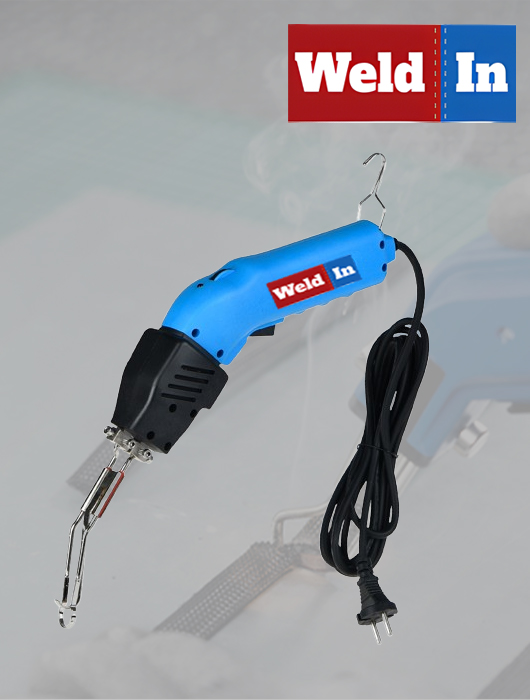

Hot Knife RS-80

Use the Allen Key loosen the screw in the copper clamp.
Insert two pins of the blade in to the copper clamp, and then tighten the screw, make sure that the clamp is touch enough with the blade, if not the blade will not work well.

Used for cutting ropes dia. within 2cm.
Used for cutting webbing.
Used for cutting various fabrics, such as canvas, awning, banner, filter fabric, non-woven fabric, garment materials etc.
Used for cutting woven bag.

Feature	Details
Model No.	RS80
Power	80W
Voltage	120V/230V (for choice)
Frequency	50/60Hz
Temp. of blade	5-8 seconds heating up 600℃
Cooling method	Air-cooled
Power cord length	3 meter
Accessories	R type blade x1 Allen Key x1 Copper brush x1 Plastic tool box/Carton (for choice) x1

Turn the temperature adjustment to the middle place, put the blade in the goods for cutting, and then press the switch. Only seconds, the blade will heat up, before real cutting, suggest do the trial cutting in the waste materials.
The temperature adjustment have 16 steps, you can check that the line in the knob, when the line is longer, that the output power larger.
Make sure the harmony of temperature and speed when cutting. If there is too much smoke, reason may be slow cutting or the overheated. It will lead to irregular and uneven cutting for the materials. In this case, need to adjust the work temperature of the blade or loosen the switch intermittent when cutting.
Loosen the switch, when there is only 3-5cm before finishing the cutting.
Please clear the residuum in the blade by copper brush after cutting.

Please make sure the tool is used under condition of ventilation.
Don't burn the residuum in the blade, the blade will be crooked.
Don't burn the blade without touching the cutting materials.
Don't touch the blade by hand when heating, and don't put the blade near to the inflammable after heating.
Handle the blade after cooling to avoid scalding.
Make sure the suitable output power and cutting speed, overheating will burn out the blade.

Item	Picture	Application

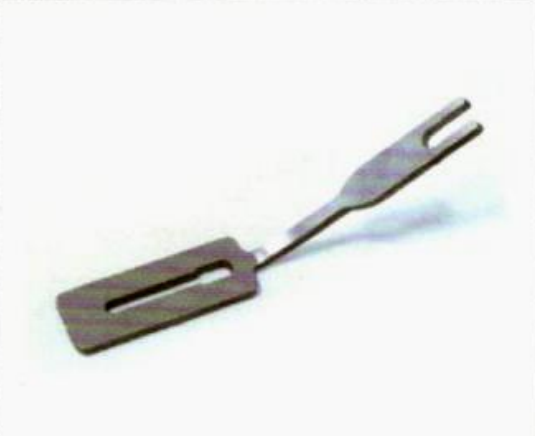

fabric cutting foot (G03)		For cutting fabric

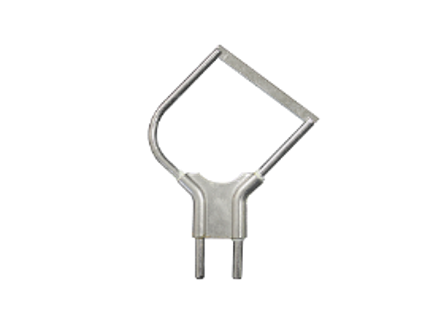

F type blade (B14)		For cutting of webbing, rope
