Industrial Air Heater WIN-50

Technical Specifications:

Maximum air temperature at air outlet 600°C
Maximum air temperature at air intlet 50°C
Maximum temperature of operating environment 50°C
Maximum voltage at air inlet 100KPa
European standard conforming mark CE
Safety level Π

Product Model:

Type	Voltage	Power	Current	Frequency
WIN50-A	230V	4.5KW	20A	50/60Hz
WIN50-B	380-400V	5-5.5KW	14A	50/60Hz
WIN50-C	380-400V	7.5-8.5KW	20-22A	50/60Hz
WIN50-D	480V	8KW	17A	50/60Hz
WIN50-E	380-440V	5-6.7KW	13-16A	50/60Hz
WIN50-F	380-440V	7.5-10KW	20-23A	50/60Hz

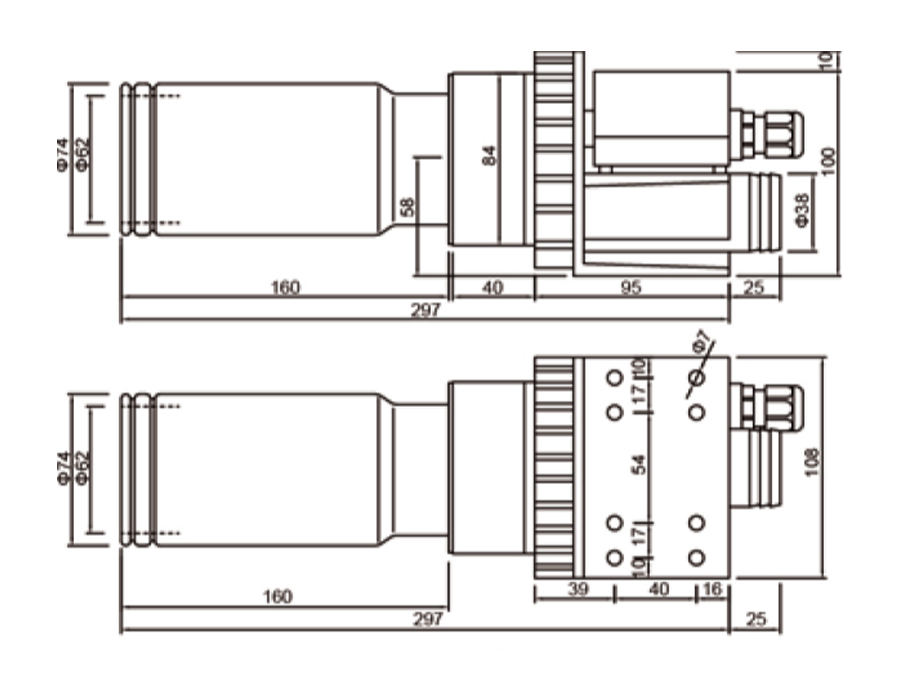

Installation Demenstion:

Industrial Air Heater
