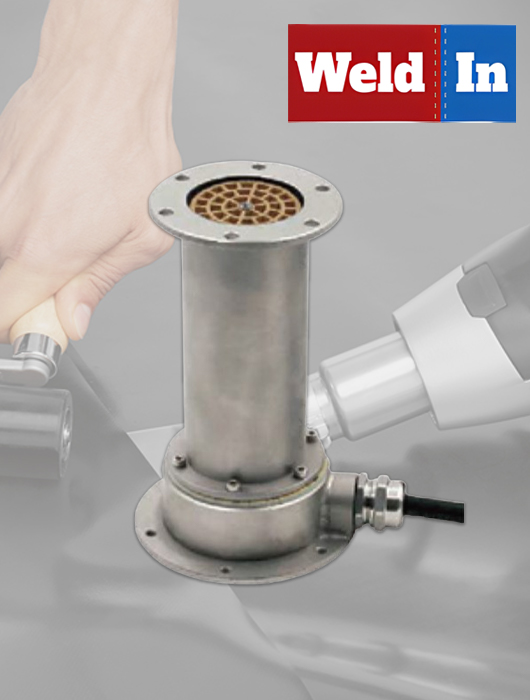

Industrial Air Heater WIN5000

Technical Specifications:

  • Maximum air temperature at air outlet 600/900°C
  • Maximum air temperature at air intlet 150°C
  • Maximum temperature of operating environment 100°C
  • Maximum voltage at air inlet 100KPa
  • European standard conforming mark CE
  • Safety level Π

Product Model:

Type Voltage Power Current Frequency
WIN5000X-A 3X230V 8.1KW 21A 50/60Hz
WIN5000X-B 3X400V 4.5KW 7A 50/60Hz
WIN5000X-C 3X400V 6.5KW 10A 50/60Hz
WIN5000X-D 3X400V 7.5KW 11A 50/60Hz
WIN30000Y-A 3X400V 30KW 44A 50/60Hz
WIN30000Y-B 3X400V 40KW 58A 50/60Hz
WIN30000Y-C 3X400V 50KW 73A 50/60Hz
Type Voltage Power Current Frequency
WIN5000Y-A 3X230V 8.1KW 21A 50/60Hz
WIN5000Y-B 3X400V 4.5KW 7A 50/60Hz
WIN5000Y-C 3X400V 6.5KW 10A 50/60Hz
WIN5000Y-D 3X400V 7.5KW 11A 50/60Hz

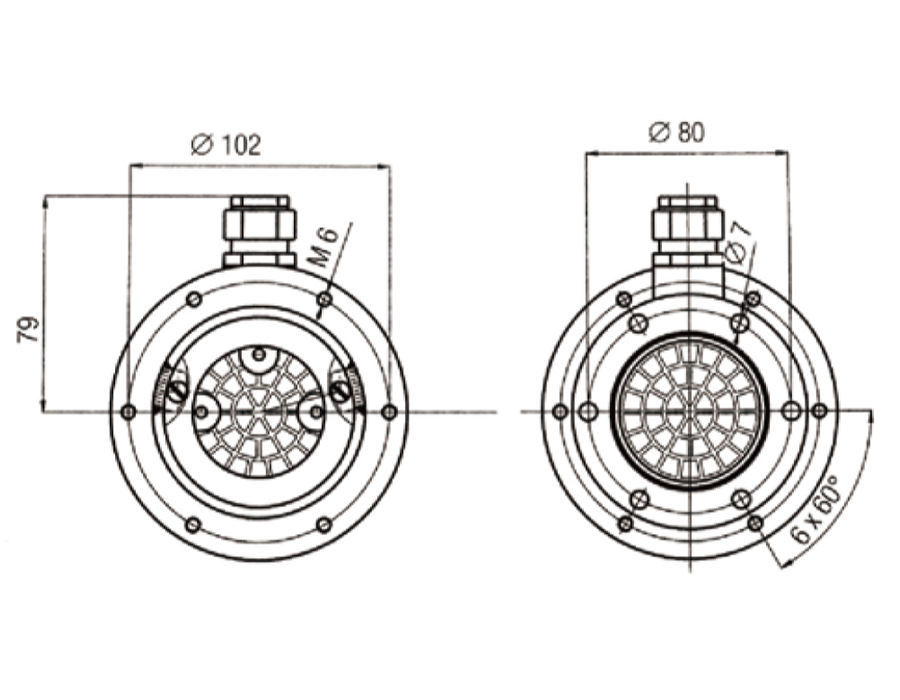

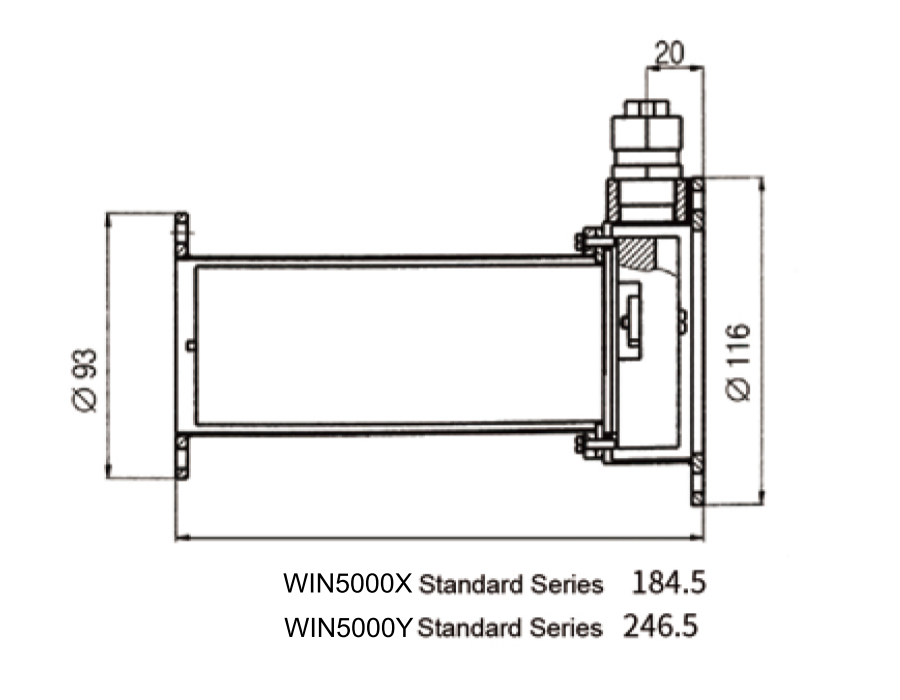

Installation Demenstion:

Industrial Air Heater
